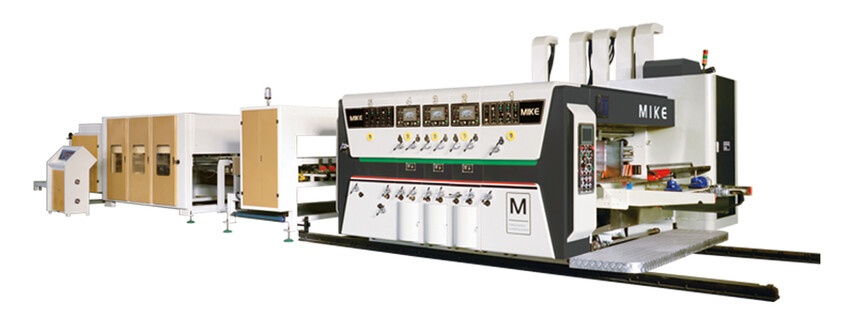

High speed automatic folder gluer inline

Function and Characteristics:

◎  The average speed is 20000pcs/hour, speed fast, which greatly improves the production efficiency.

◎  Automatic gluing, automatic folding, automatic correction, automatic counting, automatic stacking, only two people can finish the whole process.

◎  The folding arm adopts elastic pressure wheel and suction belt to convey, and the conveying is accurate. The adjustment of carton folding size and

paperboard width is completed automatically.

◎  Shaping counting and stacking part: automatic flapping, paper receiving, stacking, pushing out are all precisely controlled by frequency conversion

motor, and the circulation speed is fast. The counting part can move left and right according to the folding size of paperboard.

◎  The folder gluer inline can be linked adjusted with the printing machine. The phase of each unit, the transverse phase of each unit, the position of the

lead edge feeding baffle, the slotting and creasing position, etc. can be adjusted on the control panel of the folder gluer inline, which can avoid the

cardboard waste caused by long adjustment time

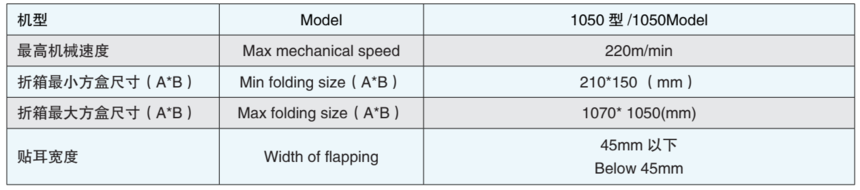

Technological parameter :
