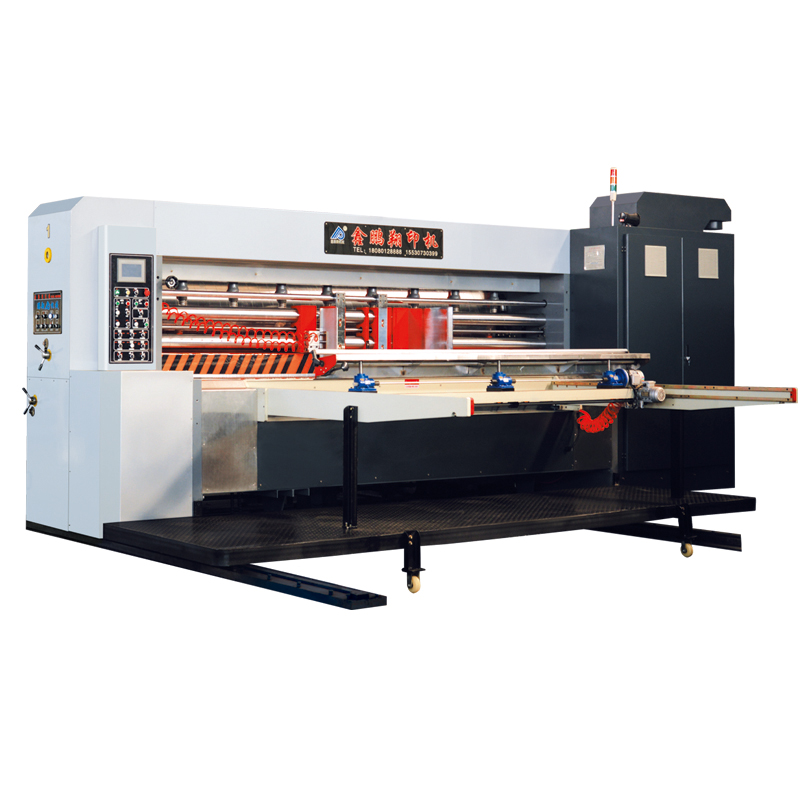

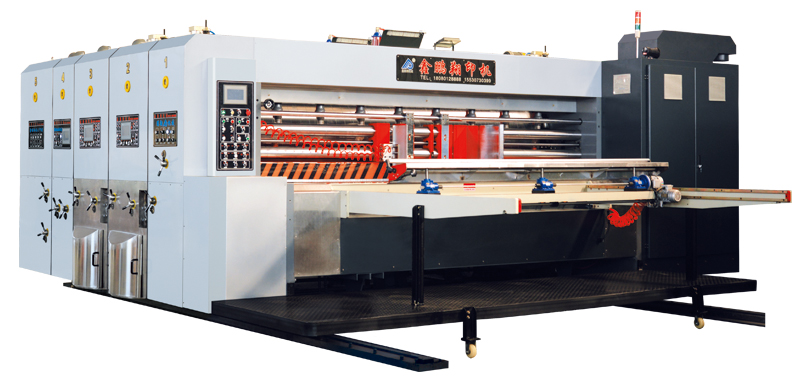

PRIVATE CUSTOM JUMBO SERIES OF HIGH-SPEED PRINTING SLOTTING DIE-CUTTING MACHI

Feeding part：

◎ Electric machine clutch, with alarm, the road between the continuous ringing, ensure worker safety.

◎ Around the bezel, push the cardboard box after blocking position, with electric adjustment and

computer numerical adjustment.

◎ Brush with wind suction dust removal device can remove a lot of cardboard

printed surface impurities, improve print quality.

◎ Host variable frequency control, start, smooth operation, energy savings of 30%.

◎ Infrared photoelectric counter, the preset number of orders processed.

◎ Online total lock function to prevent misuse damage the machine (host starts,

each unit is automatically locked).

◎ Choose continuous or skip feeding.

◎ Pneumatic elastic feed roller, do not undermine the strength of corrugated board;

under the feed roller gin, hard chrome plating.

◎ Side fences and slotted portion FBI, there are trimming can be done with or  without trimming adjustment,

saving time and effort, and the installation of pneumatic beat together means more accurate lateral positioning

 of cardboard to avoid waste.

◎ 10-inch color touch screen, control the feed unit, printing unit, slotting unit, cutting

unit once zeroed memory reset; production speeds 60,80,100,120 cruise.

◎ After the kick-type feeder or optional front feed

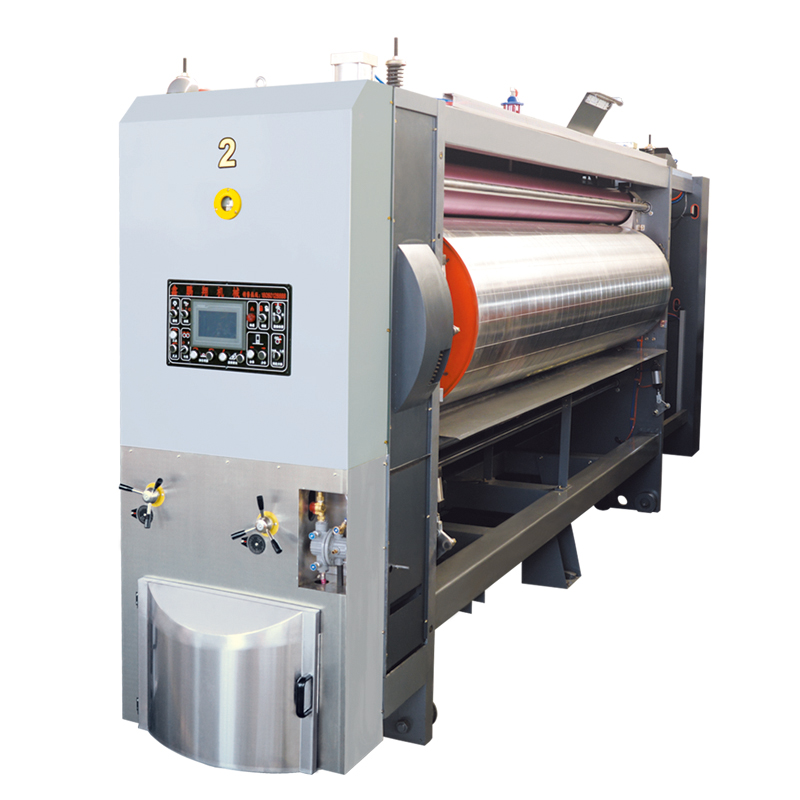

Printing part：

◎ All and roller are made of high quality steel, computer dynamic balance, eliminating

centrifugal force, grinding, hard chrome plating.

◎ Printing phase using planetary gear mechanism, PLC touch screen control, and electric

digital 360 ° adjustment (shutdown, power can be adjusted).

◎ Roller sliding touch screen control, and electric digital adjustment, a total adjustment range 10mm.

◎ Ink monitoring system, low ink detector.

◎ Hanging devices are adopted, the full version and edition half hanging version trough,

foot switch control rotating, plate loading and unloading quick and easy.

◎ Ink set gap, the printing press roller, guide roller gap with fast spanner-free adjustment.

◎ Printing phase fixing adopts pneumatic brake mechanism, when the unit is separated from the host

to limit rotation of the brake mechanism, keep the original gear fixed point position unchanged.

◎ Wiping reset function, computer printing position memory, automatic reset after wiping version.

◎ Rubber roller, wear rubber wrapped steel pipe surface, high special grinding, good ink transfer effect.

◎ Steel roller, steel surface grinding, pressing textured, hard chrome plating (optional ceramic roller).

◎ Pneumatic lift version of the device, when the host is stopped, anilox automatically from

the automatic uniform ink to prevent ink dry stagnation.

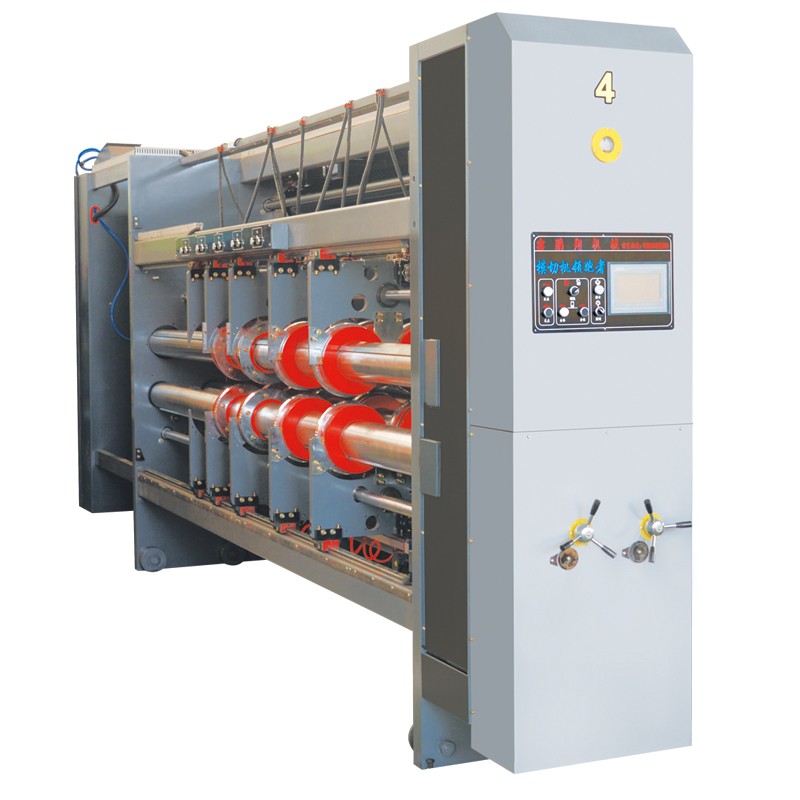

Slotting part :

◎All the carton size, box high phase completed by computer, human-machine

interface, saving time and effort, improve work efficiency, can store 999 common orders.

◎Uniaxial pole structure, pre-press, press twice better real pressure line,

pressure line carton forming effect.

◎Slot knife, creasing wheel, trimming knife sliding structure using precision

ball screw, high precision movement, the upper and lower blade meet more

accurate positioning effectively extend tool life.

◎Elastic structure Cutaway knife and cut off three, five cardboard without adjustment.

◎Slotting cutter made of high quality steel, heat treated grinding, hardness

and toughness is superb, long service life.

◎Necessary optional punch, fight hand-clasping means.

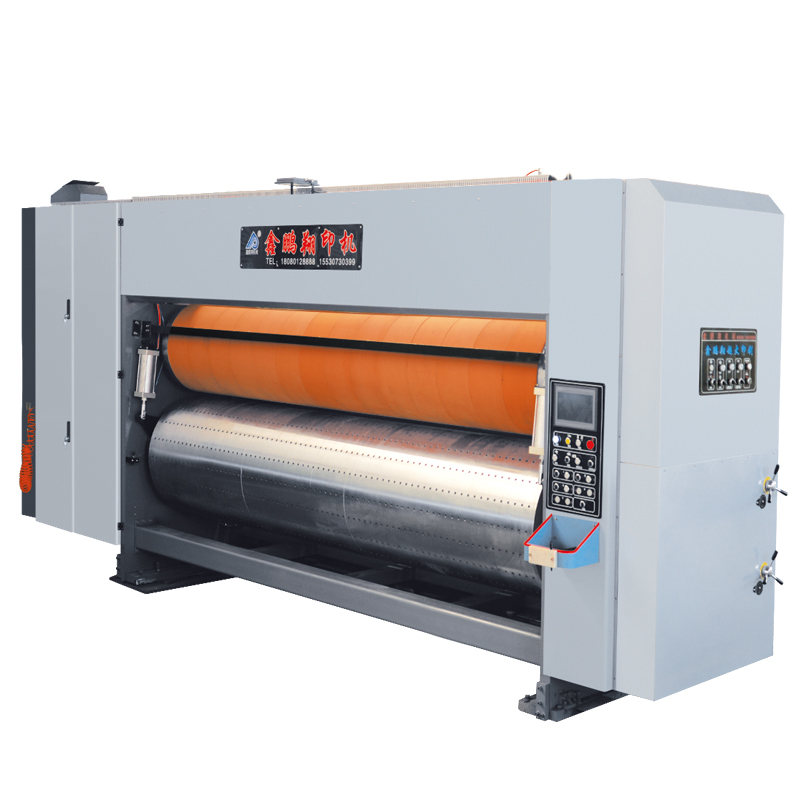

Die-cutting part:

◎Cutting knife phase, computer and electric digital control.

◎Cutting knife horizontal adjustment, computer and electric digital control,

control a total of 10mm.

◎Cushion roll cutting Shuhei institutions, pads can be used repeatedly, the

cost savings can be substantial.

◎Cushion roll laterally ± 30mm swimming mechanical device to increase the die pad life.

◎The die equalizer provides wire-speed compensation to ensure consistent

size carton forming pad after repair
