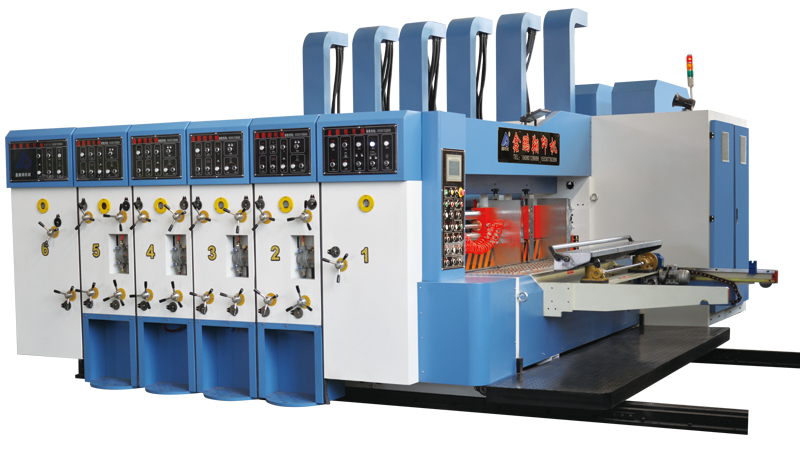

ASIA STAR-C SERIES OF HIGH-SPEED PRINTING SLOTTING DIE-CUTTING MACHI

Function and Characteristics:

◎ All the main electric appliances of the whole machine adopt the product of Schneider made in France.

◎ Adopt lead-edge feeder system.

◎ Adopting helical gear driving, the gears are made from high frequency quenching and polishing-gear.

◎ All axles of roller must be chrome-plating in order to increase the hardness.

◎ The gears adopt shower type circular lubricating.

◎ This machine adopts PLC & touching screen. Multi functional control, and frequency conversion control machine which are precise and reliable.

◎ Automatically changes back to zero and correct the plate making.

◎ Adopting the mould piece designing. The multi-color printing machines can be combined and linked in any way.

◎The side blocking plank of the feeding department and the grooving department can be adjusted electrically.

◎Cutter mould roller and soft roller adopt International standard size, with easy purchasing mould and cushion.

◎With compensating device to follow and compensate the speed of cushion roller, making sure that the sizes of the box and the cutter mould are the same.

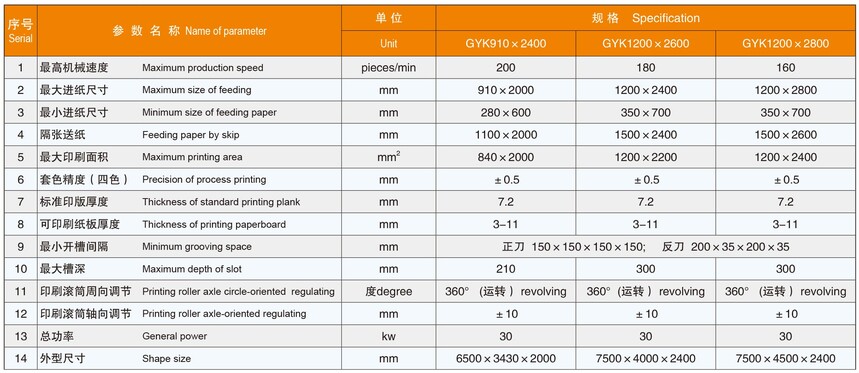

Technological parameter：
