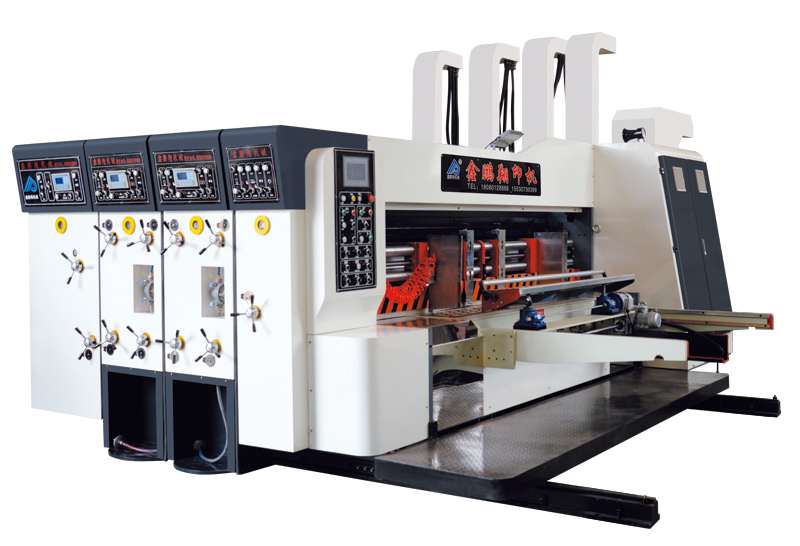

ASIA STAR-D SERIES OF HIGH-SPEED PRINTING SLOTTING DIE-CUTTING MACHI

Function and Characteristics:

◎ The electric appliances of a whole machine adopt the excellent product by the domestic products.

◎ Adopt lead-edge feeder system.

◎ Adopt helical gear driving,the gears are made from high frequency quenching and after grinding processing.

◎ The gears adopt shower type circular lubricating.

◎ Adopt inverter motor to drive and adjust the speed by frequency conversion within the certain scope.

◎ Printing slotting and die cutting electric phase adjusting mechanism.Planet type gear structure 360 degrees.(It can be adjusted while revolving and stopping).The scale panel shows the data,resolution response rate is 0.2mm.

◎ Adopting the mould piece designing.The multi-color printing machines can be combined and linked in any way

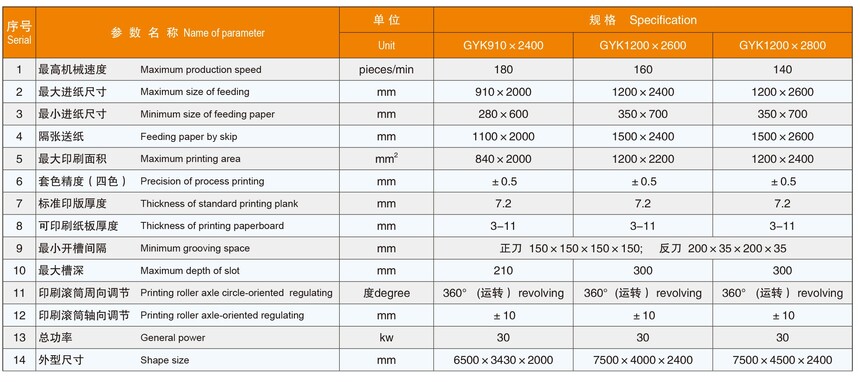

Technological parameter：
