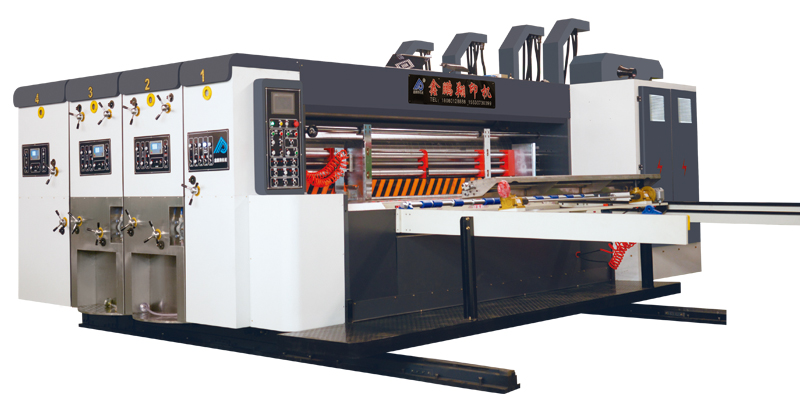

PRIVATE CUSTOM JUMBO SERIES OF HIGH-SPEED PRINTING SLOTTING DIE-CUTTING MACHI

◎ When the machine electrical and computer software adopt international famous brand, quality stable and reliable;Adopts the man-machine interface, the

computer order management, easy to operate, in single faster (can be stored 999 orders).

◎ The machine wallboard and important components, adopt aging treatment, eliminate the metal internal stress;Adopt high precision machining centers, CNC

grinding machine for grinding processing.

◎ The machine shaft, roller adopt high-quality steel, tempered, tempering treatment;Grinding processing, high precision computer dynamic balancing

correction, surface hard chromium plating.

◎ The machine drive gear adopt 20 crmnti alloy steel, carburizing and quenching treatment, hardness HRC58-62;The gear grinding processing, precision level 6,

ensure the long-term use of tinted with high precision.

◎ The machine transmission parts (shaft, gear joint), adopt free key connection (lhe swelling sets), the connection clearance, suitable for long-term high speed

with high torque.

◎ When the machine drive bearing important driving part adopts heavy-duty self-aligning bearing, easy maintenance, long service life.

◎ When the engine lubrication system adopts spray type automatic lubrication, visual display device, equipped with double hydraulic oil level balance system.

◎ The machine adjustment preset functions, paper, printing, slitting, die-cutting, automatic zero memory automatic reset.

◎ The machine work clearance adjustment, avoid wrench rapid adjustment, perform quick and convenient adjustment.

◎ When the host USES frequency conversion control, start, run more smoothly, more energy efficient.

◎ When can choose according to need to vacuum adsorption after playing type paper or the front paper.

◎ Have options: ceramic anilox roll;Scraper ink system.

◎ When there is lack of ink alarm device, the real-time monitoring for the ink system working condition.

◎ The whole machine is equipped with the limit and distance showed.

◎ Electric adjustment options machine work.

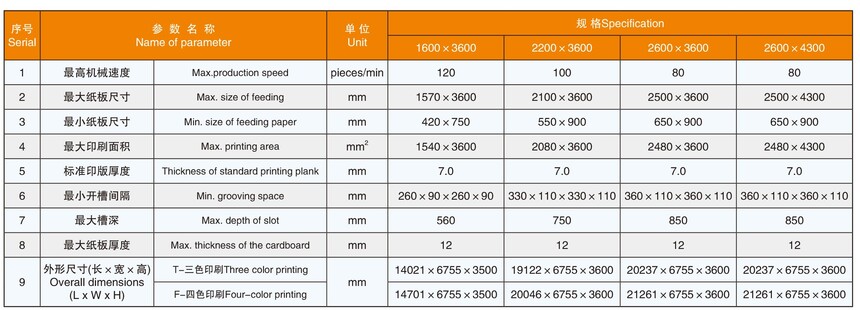

Technological parameter：
