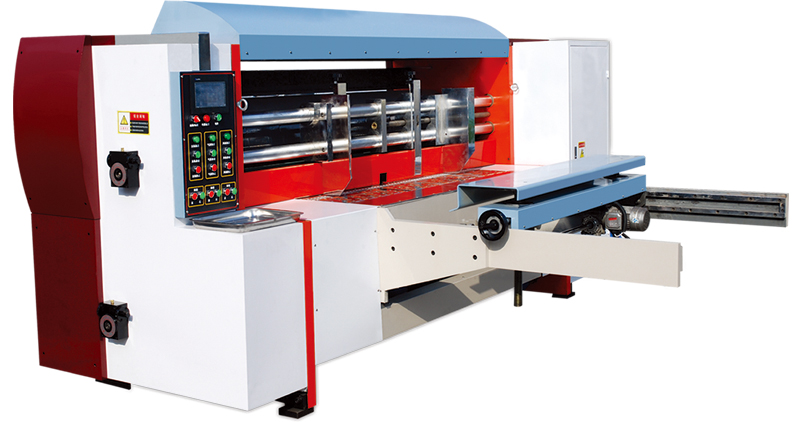

QY Leading Edge Feeding Full Auto Die-cutting Machine (With Computer )

Function and Characteristics:

◎ It adopts PLC controls, perfect protection function. Reliable control.

◎ LCD touch screen can make the human and machine talk directly.

◎ Soft roller repair structure, it can improve rubber using rate, it can repair 3-4times.

◎ Compensate automatically with limited speed and ensure the size of die-cutting is consistent.

◎ The die-cutting roller is alloy steel in high quality, wall thickness is 30mm, balanced correction and hard chrome.

◎ Wall plate is excellent cast iron, thickness is 50mm. It is made by large processing center.

◎ The polyurethane rubber pad is from American CUE, install conveniently, it can die-cutting 12000000 times.

◎ Soft roller can be moved right and left 40mm automatically, rubber wore is even.

◎ Six grades is excellent grinding, it adopts 40Cr material. low noise and long using life.

◎ Die-cutting roller is with auto separate device and reduce rubber wearing.

◎ It adopts advanced leading edge system , high feeding precision, fast speed, feeding wheel

is using life, the speed can be up to 10000pcs/hour, precision is ±0.5mm.

◎ The blowing rate can be controlled.

◎ The phase is controlled by computer and 360°phase adjustment , fast and accurate.

◎ Ahead guard is adjusted manually , side guard is adjusted by computer.
